The Mictrack MT710 has a 650mAh backup battery that’s replaceable. If you need to swap it out, this post will show you how to remove the battery safely.
Power OFF Device
- Please make sure the device is POWER OFF.
- If the device is Power On, press and hold the SOS button for 8 seconds to Power OFF
Open Back Cover
- Remove the screws and open the back cover.
Remove Backup Battery
Since the solder pads for the MT710 battery holder are quite small, directly pulling the battery leads can sometimes result in poor contact with the battery holder pads. Therefore, we generally recommend that customers hold down the battery holder with their hand when removing the battery, as this is safer.

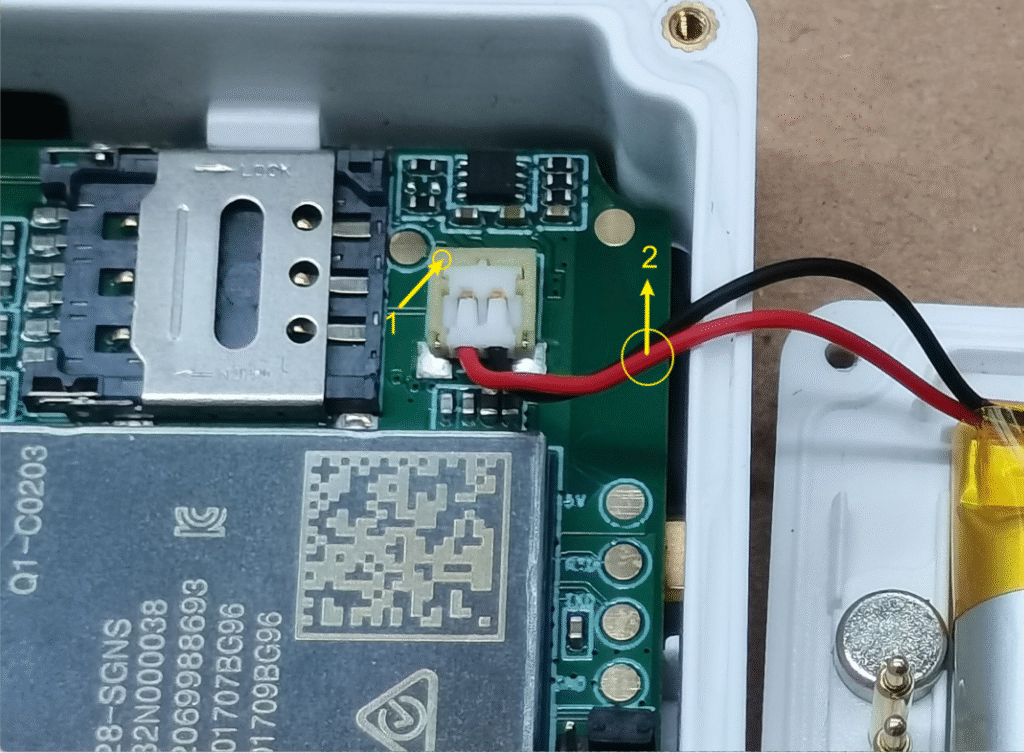

- Press down on one corner of the white battery holder (1 in the image below)
- Gently pull the battery cable(red/black) upwards to slowly remove the battery(2 in the image).
How To Remove the MT710 Battery
Install Backup Battery
- Insert the battery into the battery connector in the correct direction.

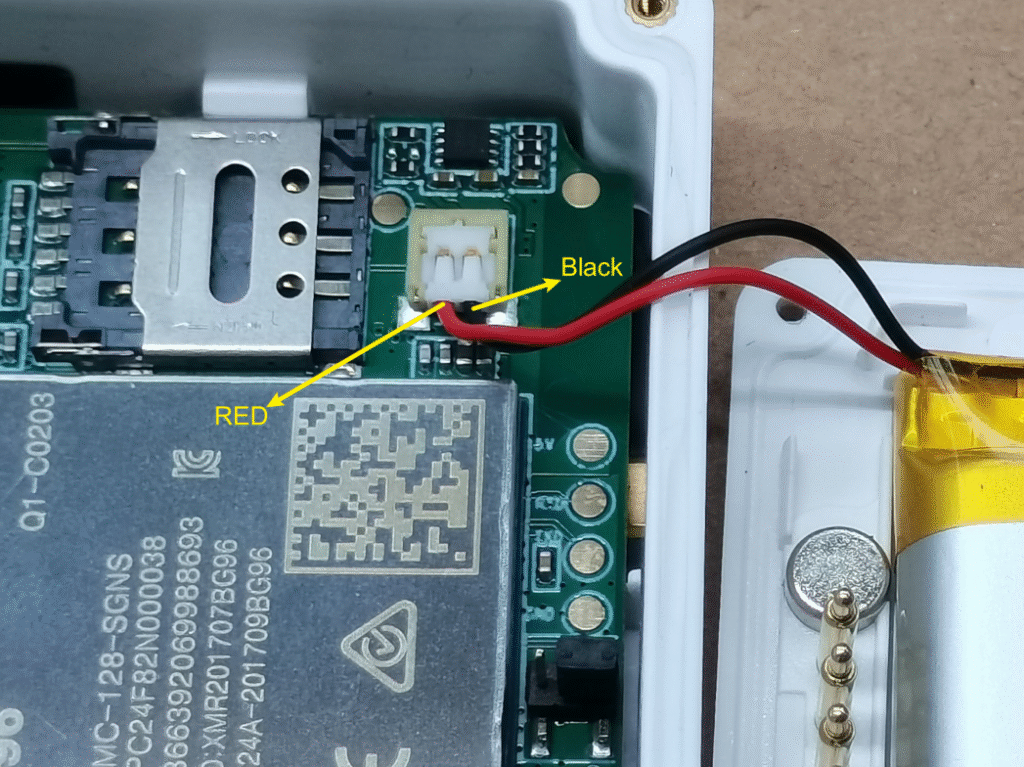

Please notice the MT710 battery wiring direction (as shown in the following image); if the direction is wrong, it may break the PCB.
MT710 Battery wiring direction
How to Install the MT710 Battery
